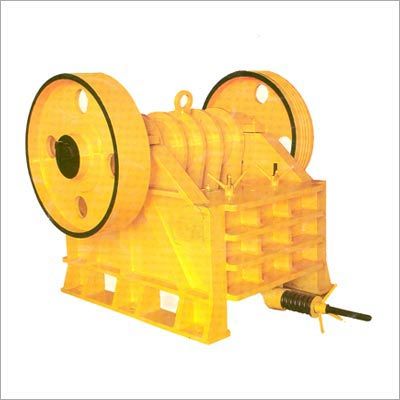

Single Toggle Jaw Crusher

Single Toggle Jaw Crusher
Single Toggle Jaw Crusher
Product Code : ME & T 06
Brand Name : MAHALAXMI ENGINEERS & TRADERS
Product Description

We are the foremost manufacturer and supplier of excellent quality Jaw Crusher Single Toggle. It is manufactured at our advanced manufacturing unit under the guidance of our technocrats using high quality raw material and contemporary technology. This crusher is mainly used for crushing hard and abrasive material for construction purposes. To meet the desired requirements of the clients, offered crusher is available in different specifications. Our clients can avail this Jaw Crusher Single Toggle at pocket-friendly prices.

Features:

  • Sturdy construction

  • Long service life

  • Hassle-free functionality

  • Low maintenance

Specifications:

'St' and 'STG' series Heavy duty single toggle jaw crushers and granulators are manufactured for the heavy workloads and are well acknowledged leaders in its fields for its proven performance. Selection of the self- aligning double row spherical ball bearings is based on the load factor, safety factor, smooth running and power economy. The bearings are protected against ingress of dust with the help of labyrinth sealing. Heavy duty design, skilled engineering, Experienced Labour Force, Un- Compromising Quality Assurance Department ensure that our 'ST' and 'STG' series Jaw Crushers and Granulators are completely dependable and durable in all respect.

Jaw Plates

Two nos. of Jaw Plates are fitted in each machine known as: Swing Jaw Plate and Fixed Plate. The jaw plates are of high manganese steel castings. The proper metallurgy of jaw plates offers the maximum of crushing life. Proper pitch and profile of jaw teeth ensures the required crushing in proper shape depending upon the nature of stone.

Fly Wheels

The heavy duty flywheels properly machined allow the crushing of feed material present in the crushing chamber and empty the chamber in the case of occasional power failure. So, no heavy load at the time of re- starting and thus the security of motors and machine and less power requirement while crushing.

Side Plates

Cast steel plates of proper thickness are provided to protect the body plates from direct wearing. Properly machined V- grooves are provided on one flywheel and the other flywheel is with plain surface. Balancing of flywheels is done to avoid any kind of undesired vibrations.

Toggle

Special heat- treated and properly machined toggle bearings and fabricated / cast steel toggle plates are provided for very

Toggle Plates

Very high life since these toggle bearings and toggle plates are always working in rubbing action.

'STG' Series Jaw Granulators



Model
Feed Opening (mm x mm)
Max. Feed Size (mm)
Capacity (TPH) at Different Jaw Settings (mm)
RPM of Crusher
Reqd. Motor HP/ 1440 RPM
18
25
40
50
63
75
90
100
STG 624
150 x 600
120
-
15
21
28
36
-
-
-
330
30
STG 636
150 x 900
120
-
21
32
43
55
-
-
-
330
50
STG 836
200 x 900
160
-
-
32
43
55
70
-
-
330
50
STG 442
100 x 1050
80
19
25
38
50
-
-
-
-
330
60
STG 642
150 x 1050
120
-
25
38
50
65
-
-
-
330
60
STG 942
225 x 1050
180
-
-
38
50
65
80
-
-
330
60
STG 1048
250 x 1200
200
-
-
43
57
72
93
-
-
282
75
STG 1248
300 x 1200
240
-
-
-
57
72
93
110
-
282
75

  • The data for throughput capacities are average values and depend on the gap setting and the physical crushing characteristics of the individual type of feed material.
  • The capacities are based on the bulk density of 1.6 tons per cu. mtr.
  • Feed material should be 0.8 smaller than the crusher's feed opening.
  • The figures listed indicate the range of CSS normally recommended. Smaller setting are permissible subjected to the nature of feed material.
