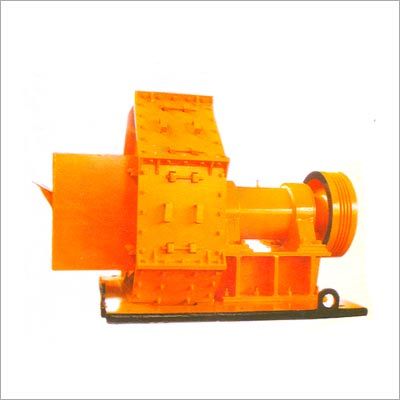

Rotopactor Machine 1000MM

We are a well-reckoned name in the industry, engaged in manufacturing and supplying high performing Rotopactor Machine. This machine is a stone crusher that helps in breaking fed stone in smaller pieces by impact process. It is manufactured in our advanced manufacturing unit using supreme quality components and pioneering technology by our adroit professionals in compliance with international quality standards. Our esteemed clients can avail this Rotopactor Machine from us at pocket-friendly price.
Features:
-
Trouble-free functionality
-
Long-service life
-
Low maintenance
-
Optimum performance
Specifications:
It consists one base plate of mild steel as a base of whole machine. On this base plate there is fitted a rotating chamber consisting a set of Mn. Steel rollers, bounded by two pieces of Mn. Steel inner and outer rings. The inner surface of rotating chamber contains liners and teeth of Mn. Steel. The rotation of the roller assembly is provided with a steel shaft of ENB tested quality material. This shaft is driven by C.I. drive pulley, this shaft rotates through a set nos brackets fabricated in mild steel or in casted brackets. All other parts of the body are in high quality tested mild steel.
Machine Models | Approx Capacity | Feed Size | RPM | Approx H.P. |
M- 800 | 50 TPH | 800 mm | 850- 900 | 75 HP |
M -1000 | 150 TPH | 100 mm | 700- 800 | 200 HP |
Conveyor
The conveyor is used for conveying the material from one place to another place. These are of two type's
- Reclaimed tyre belting conveyor.
- Nylon belting conveyor.
Reclaimed Tyre Belt Conveyor
Consists of fabricated base frame, drum pullies, tyre belt, bearing brackets, shaft, C.I. cones, grease and pulley as well as supporting structure.
Nylon Belt Conveyor
Consists of nylon belt, drum pulleys, impact idler and carrying idlers, return roller, guide, reduction gear, drum pulley shaft, bearing bracket, skirt board, deck plate, tensioning screw and supporting structure etc.
